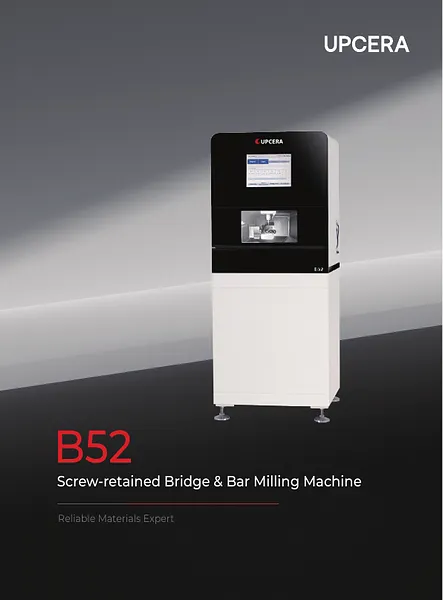

UPCERA
-
B52
· 12-inch touch screen,easy-to-use UI
· High Stability, high precision
· Easy to use, 24 hour continuous run
· One-cast steel structure delivers the highest level of stability
· High performance spindle with automatic tool changer
· Top class mechanical & electrical parts, protection module safeguards against power failure and low air pressure

Device Parameters
Dimensions
65*65*175cm
Weight
400kg
Voltage
220V 50Hz 110V 60Hz (Optional)
Power
4.5KW
CompatibleCompressed Air
0.55-0.8 MPa
Spindle Speed
60,000rpm
Processing accuracy
< 0.01mm
Rotation Angle
A axis is ±30°, B axis is ±360°
Number of Bur
16
Cooling Type
Water cooling
Materials
Titanium disc, PMMA, Pre-milled, Wax
Co-cr disk / Glass ceramic (optional)
Milling Speed
Customized butment (40 mins/unit),Pre-milled butment (15 mins/unit),Glass ceramic (10-30 mins/unit),PMMA (10 mins/pcs), Wax(3 mins/unit),Titanium framework (180 mins/unit)

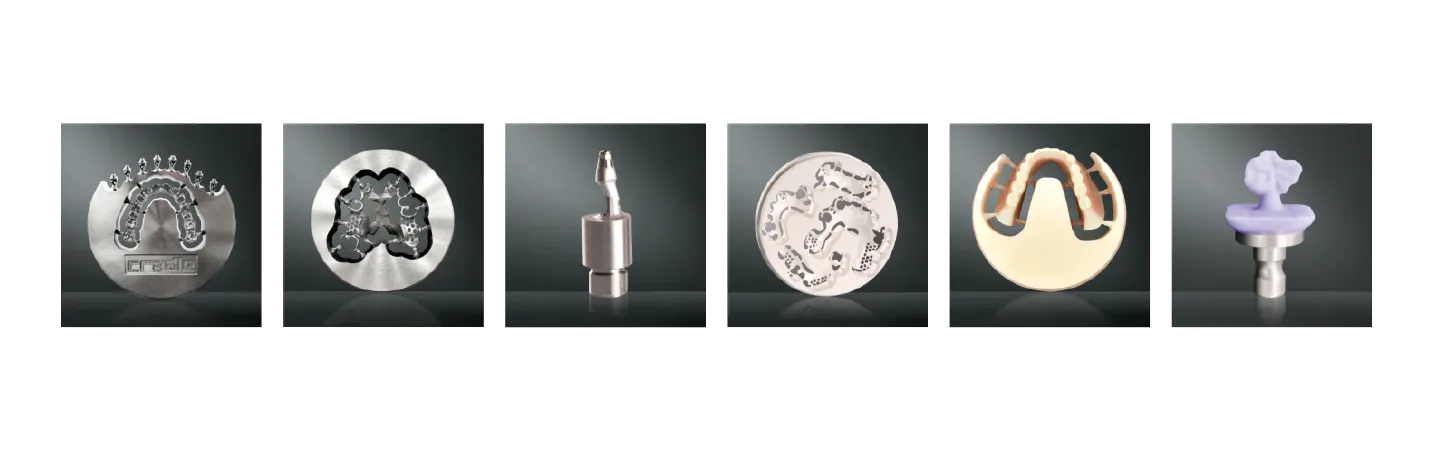

Application
Customized abutment, implant bridge bar clip, pre-milled abutment inner coping,full crown,bridge / inlay, veneer (optional)
