B42

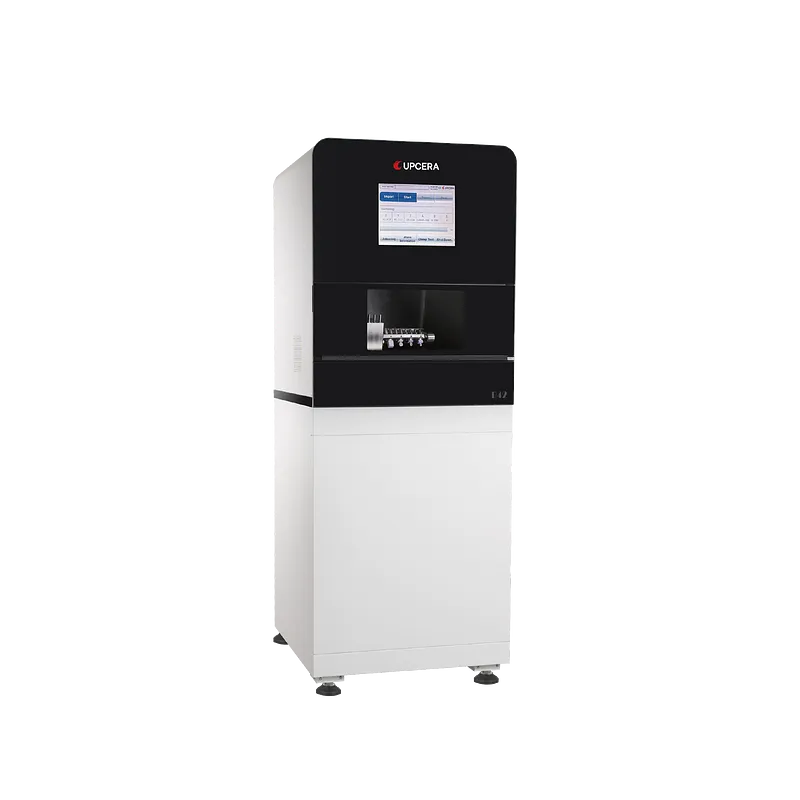

Pre-milled Abutment Milling Machine

Consult now>>

UPCERA

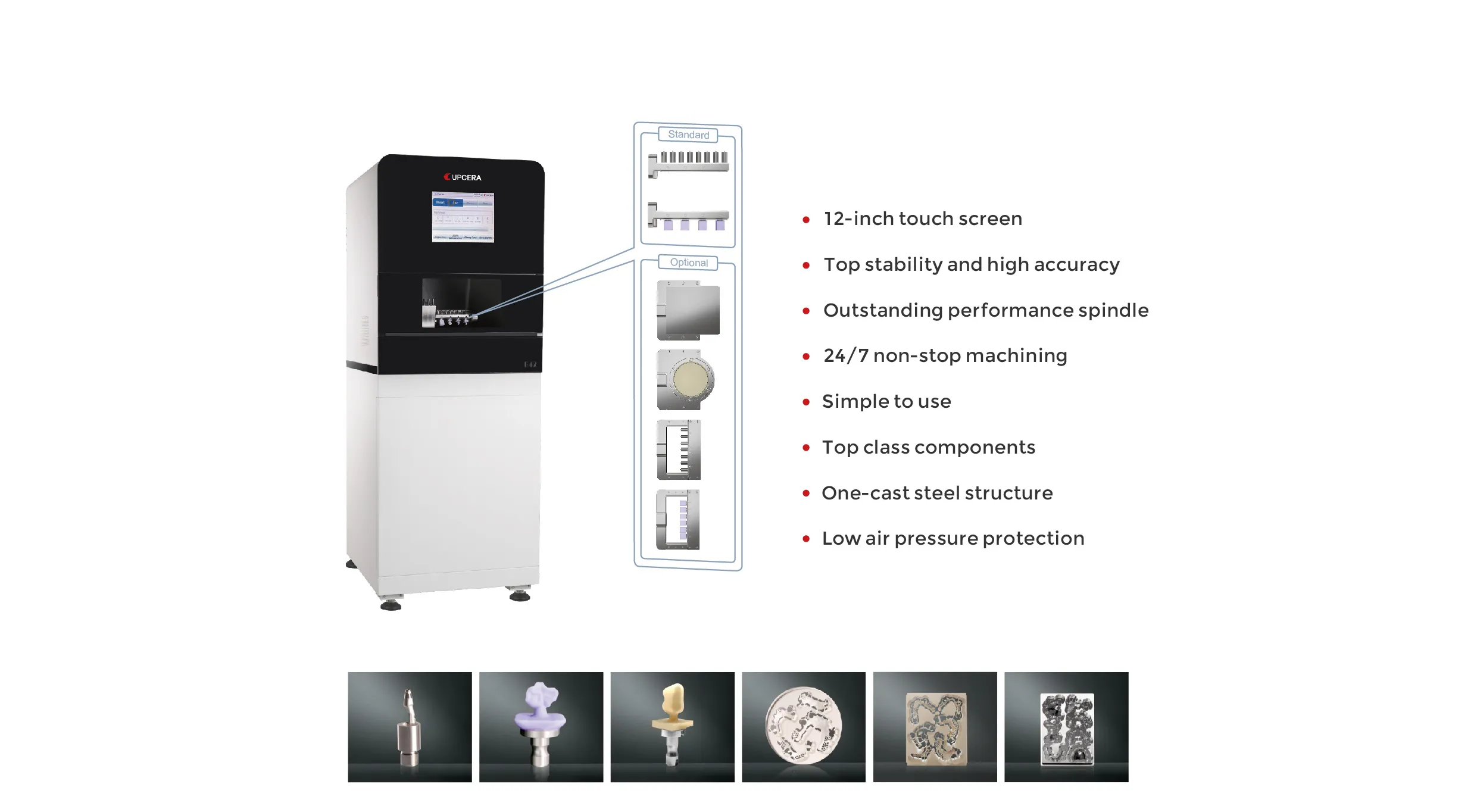

  • B42

    · 12-inch touch screen
    · Top stability and high accuracy
    · Outstanding performance spindle
    · 24/7 non-stop machining
    · Simple to use
    · Top class components
    · One-cast steel structure
    · Low air pressure protection

  • B42

Device Parameters

Dimensions

65*65*175cm

Weight

409kg

Voltage

220V/50Hz ; 110V/60Hz (Optional)

Power

4.0KW

Compatible Compressed Air

0.5-0.8 MPa

Spindle Speed

60,000rpm

Precision

< 0.01mm

Tilt Angle

A axis: ±360°

Number of Bur

15

Cooling Type

Water cooling

Materials

Pre-milled Ti base, Glass-ceramic/ Titanium Disc, PMMA, PEEK (Optional)

Application

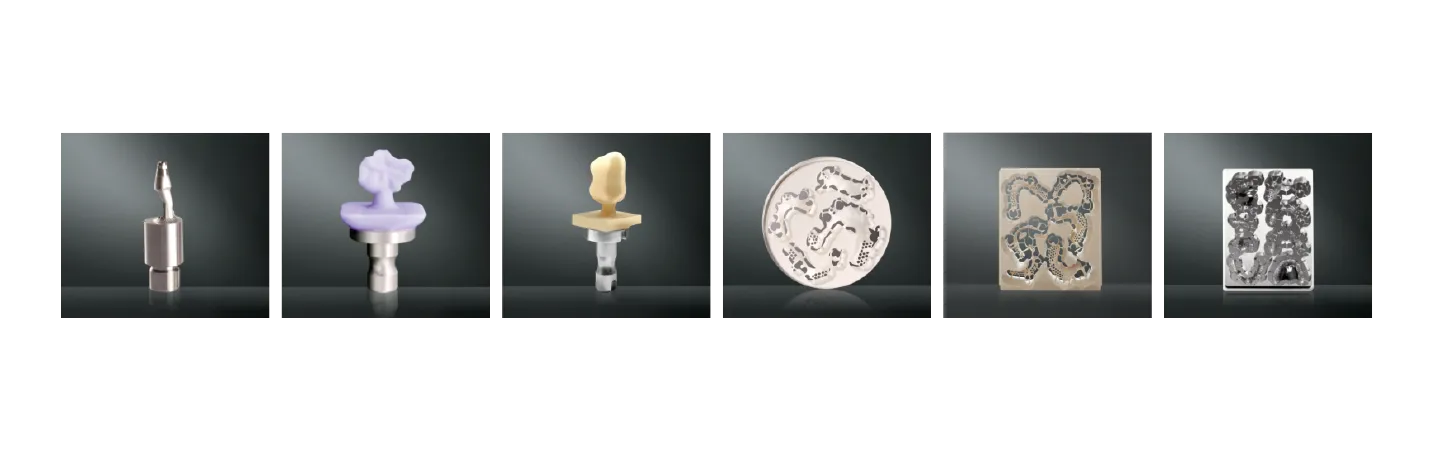

Customized abutment, crown, inlay, onlay, veneer/dental framework (Optional)

Milling Speed

Pre-milled abutment (15mins/unit), Glass ceramic (10-30mins/unit), Metal crown (25mins/unit), Framework (Wax/PEEK/Titanium, 45/120/180 mins/pc)

Downloads

B42-2025.pdf

1.18 MB

Any questions, requests or suggestions? Please feel free to contact us at any time
